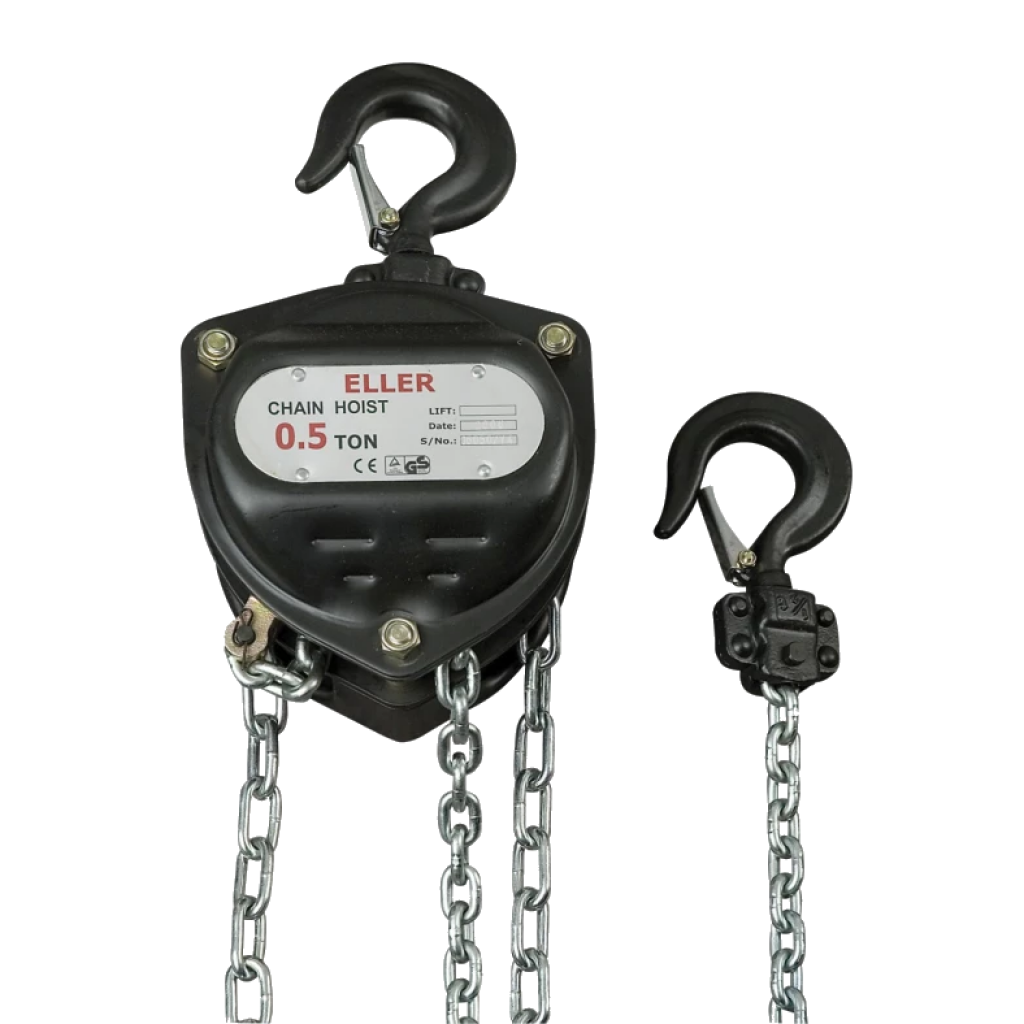

Eller 0.5T 10m
The ELLER PH2 hand chain block is the result of continued development of the highly successful PH1.
Utilising the latest technology and improved construction has resulted in a compact design, better handling and the PH2 being significantly lighter than its predecessor - all without sacrificing stability. In addition, the PH2 is better able to withstand corrosion due to all parts like bolts, nuts and washers being galvanised and a steel housing that receives a durable black powder coating providing protection from environmental factors such as dirt and rain.
Safety features include:
- Standard overload protection on 0.5t and 1.0t models
- Ratchet type brake with independent twin pawls ensuring reliability and greater safety
- Precision bearings support the pinion shaft for smoother operation and increased mechanical efficiency
- Top and bottom forged swivel hooks made of heat treated, tempered steel with forged safety catches
- Robust chain connection
- European grade 80 tempered and galvanised load chain as per EN 818-7.
General |
|
|---|---|
| Brand | Eller |
| Type | ELPH2-00500 |
| Weight | 19 kg |
Accessories |
|
|---|---|
| Chain Bag | 1 piece |
Rigging Specs |
|
|---|---|
| WLL | 0.5 T |
| Lifting Height | 10 m |
| Hand Chain Height | 9.5 m |
| Pulling Force | 24 kg |
| Headroom | 309 mm |
