Trussing

Truss plays an important role in many events. It is most commonly used to build structures on which equipment such as lighting, audio, video, or decor can be hung.

By using different lengths and corners, you can create the most remarkable creations. All the components can be seen as a kind of LEGO blocks that fit together. These structures can be self-supporting on legs or suspended using hoists.

Prolyte H30V

The H30V series is a truss standard produced by Prolyte. This series is known for its versatile use, strong construction, and long lifespan. These trusses are perfect for use on stages, at trade shows, at conferences, outdoor banners, and much more!

The H30V series from Prolyte is the Heavy-duty variant. The wall thickness of this truss is 3mm. Most competing brands, including Prolyte's own X30V series, have a wall thickness of only 2mm. This difference may seem small, but it makes the H-series much sturdier. This allows for larger spans and higher load capacities.

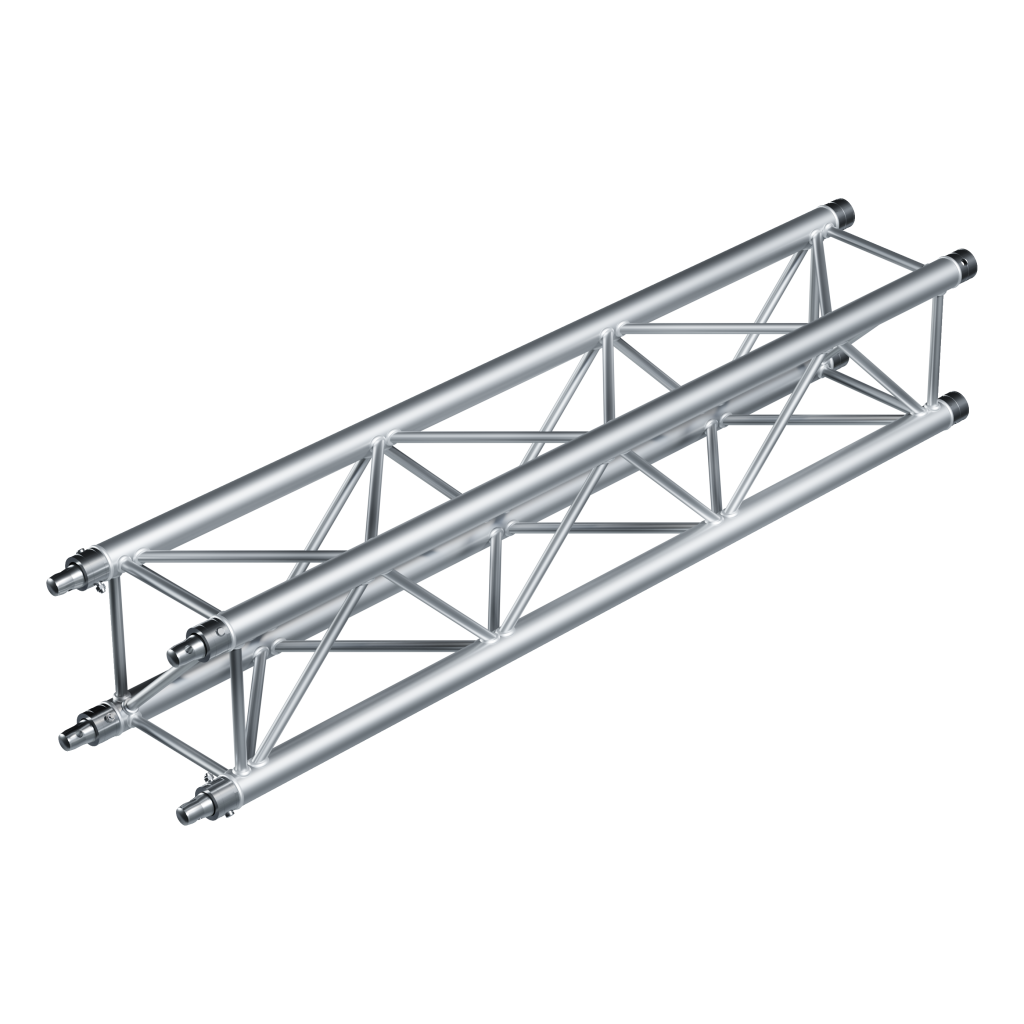

H30V-L150

Now let's talk about the specific piece at hand. The H30V-L150 by Prolyte is a 150cm length truss. It is commonly used to create legs for a standing truss structure or to make small spans. The advantage of using a 150cm length section is that you have fewer connections visible. Instead of connecting a 100cm and a 50cm section together for the same span, you can use a single 150cm section. This can be a solution for areas with visibility where you want to ensure a neat appearance! Combine them with our other lengths and angles to complete your structure.

General

Brand Prolyte
Type H30V-L150
Coupler system CCS6
Weight 6,86kg


Dimentions

Width 29cm
Height 10,10 kg
Length 150cm


Accessories

CCS6 Coupler 4 pieces
CCS6 Screwpin 4 pieces


Downloads

Prolyte H30V Loadingtable Loading Table H30V - pdf
Prolyte H30V Datasheet Product Data Sheet H30V - pdf


Trussing

Prolyte H30V-L150

Prolyte H30V is an aluminium based trussing system that is used in the entertainment industry. It’s main purpose is to hang or support other equipment.

starting from

€7,50
